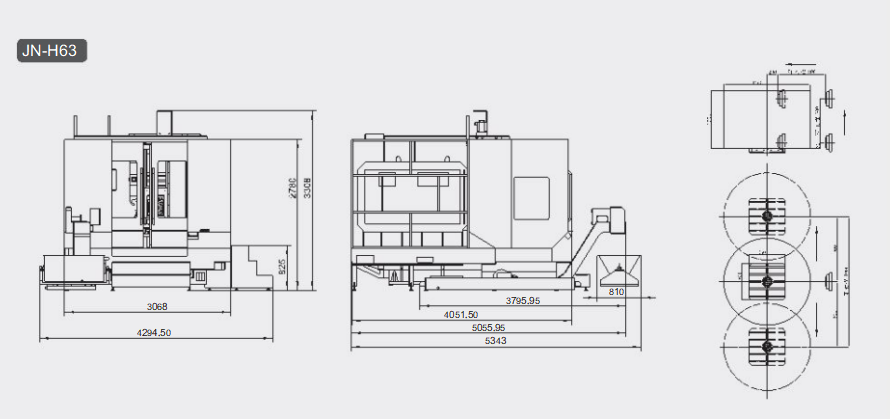

JN-H63 High Speed Heavy Horizontal Machining Center

High-Performance Spindle

Spindle Center Air Blow: Keeps the tool holder clean, enhancing machining accuracy.
Spindle Air Curtain Protection: Prevents dust from entering the spindle bearings, extending the lifespan of the spindle.
Integrated Nozzles Around the Spindle: This design eliminates the need to adjust a single nozzle when machining complex shapes, providing consistent cooling and cleaning.

Guideways and Ball Screws

Three-Axis Guideways: Utilizes German SCHNEEBERGER R55 high-speed heavy-duty linear guideways, offering high rigidity, high load capacity, high speed, and low thermal deformation.
Three-Axis Ball Screws: Employs Japanese THK SBN50X ultra-high-speed, ultra-quiet ball screws, with a DN value up to 2,200,000, ensuring low noise, minimal thermal rise, high speed, and rigidity.

Control System

High-Performance Control System: Equipped with the FANUC Series Oi-MD, providing high precision, increased productivity, and enhanced safety in machining processes.
Expandable Memory: The control system supports CF card integration, allowing for increased external memory capacity.
Comprehensive Error Compensation: Various error compensation features enable high-precision machining, minimizing deviations and enhancing accuracy.

Oil-Water Separator

Efficient Oil-Water Separation: Prolonged oil contamination in the coolant tank can lead to deterioration and odors. The separator effectively removes oil contamination, keeping the coolant tank clean.

Tool Magazine

Horizontal Machining Center Tool Magazine: Features a cam-dividing mechanism with high precision and low failure rates. The separated tool claws ensure quick tool changes with stable performance and easy maintenance. Its modular design allows for customization based on the specific production needs of the customer.

Electrical Cabinet

Sealed Electrical Cabinet: Prevents oil mist and water vapor from entering, protecting electrical components from moisture and potential short circuits or damage.

Pneumatic System

External Pneumatic System: The air compression system is mounted externally on the protective casing, making it easy to manage and maintain.
Lubricator Positioning: Designed for convenient oil addition, the lubricator is positioned away from electrical components to ensure safety and ease of use.
